Product Description
![微信图片_20240615093738.jpg](/static/upload/image/20240615/1718416221128867.jpg)

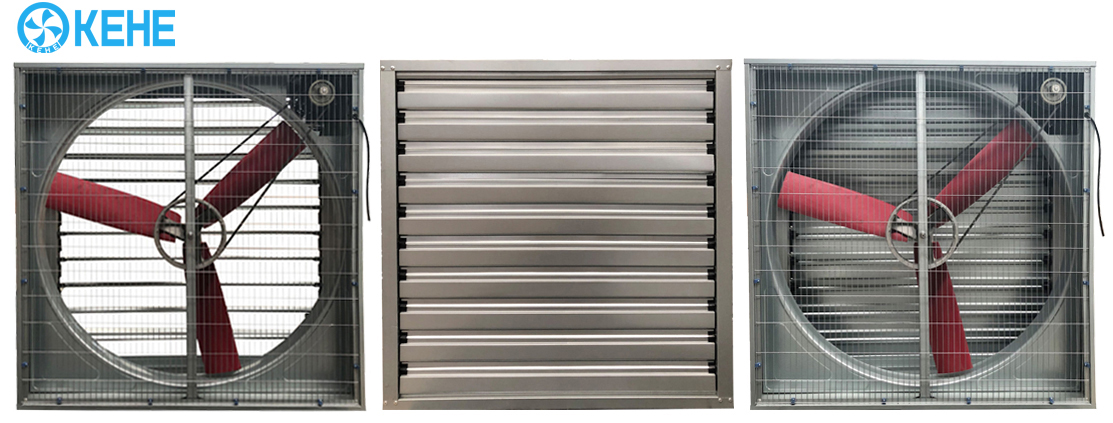

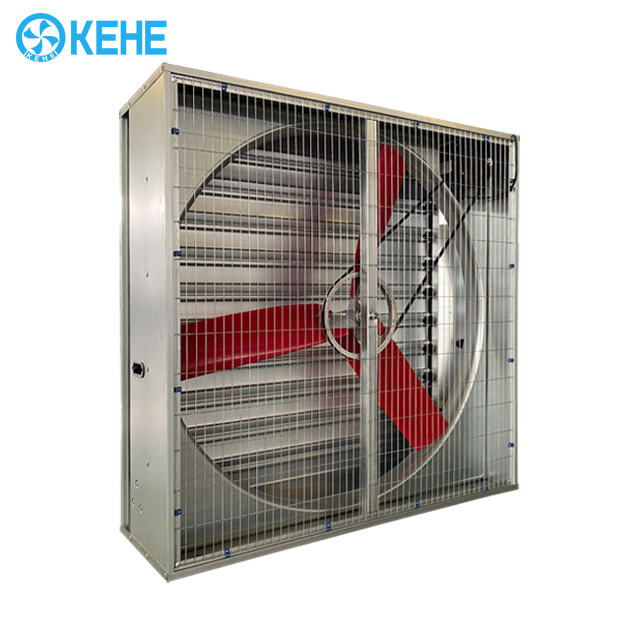

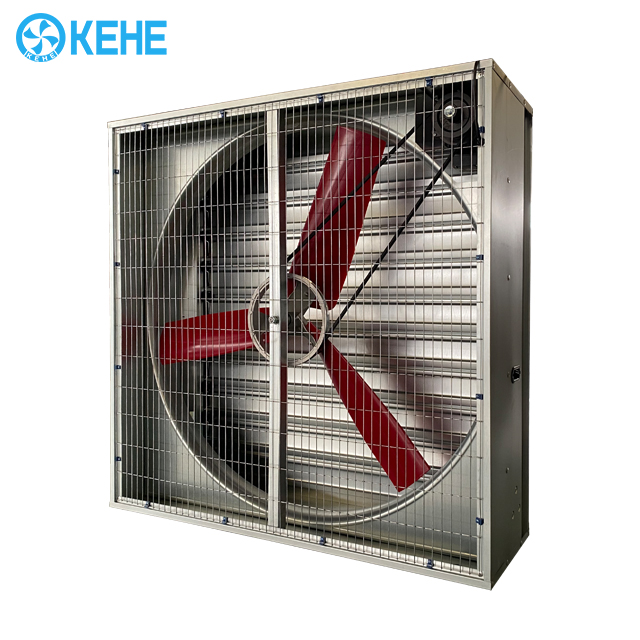

The fan is mainly composed of blades, belt pulley, belt, bearing, blade support, shutters, frame, protection mesh, motor and other components. The motor drives the blades to generate airflow.
![图片 2.png](/static/upload/image/20240410/1712739414119685.png)
Detailed Images
![图片 3.png](/static/upload/image/20240410/1712739515634048.png)

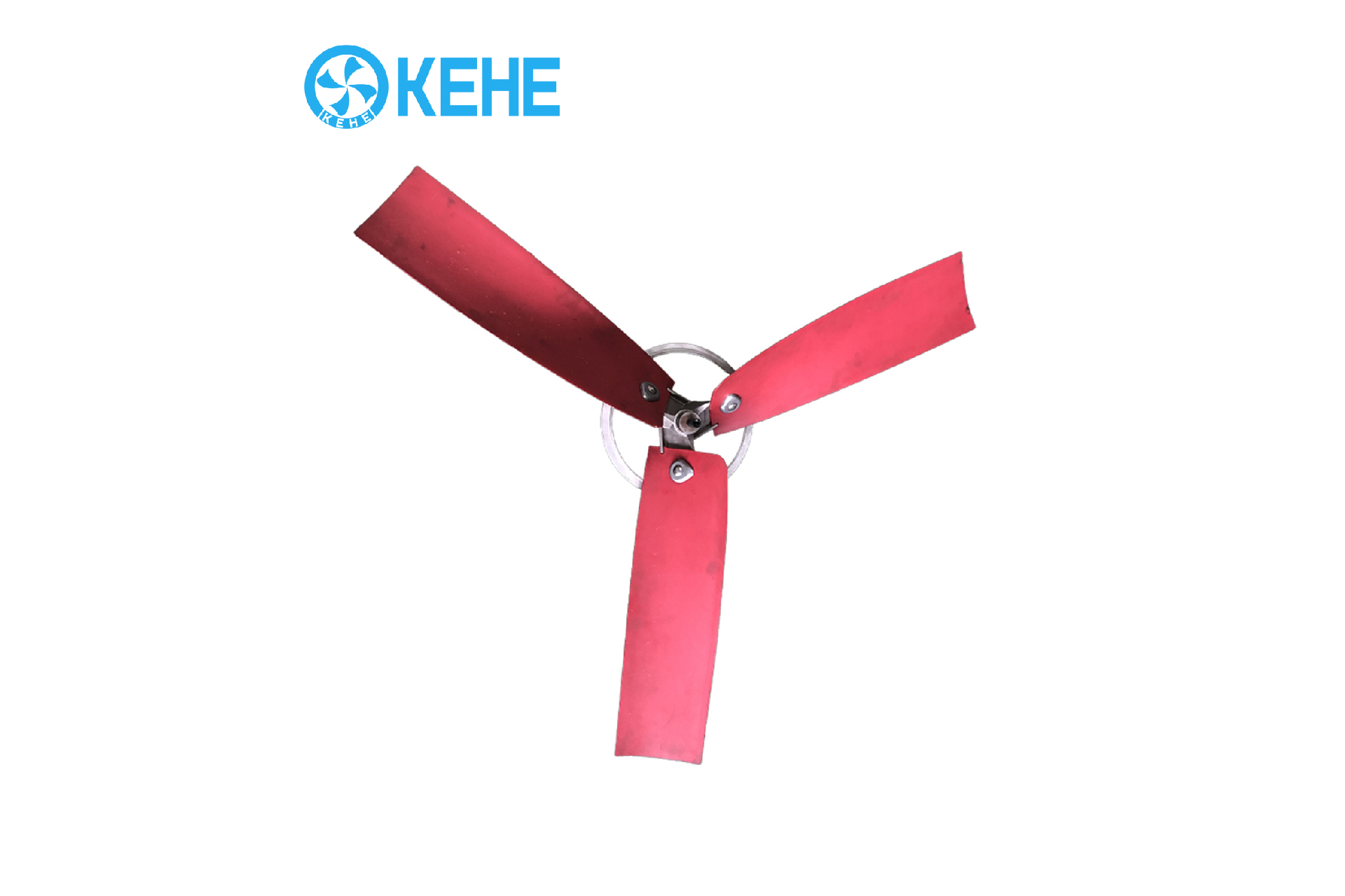

| Fan Blade Material: high quality plastic Feature: reasonable blade angle design. Good outlook, low noise, large airflow. |
|
|
|
|
|
|
|

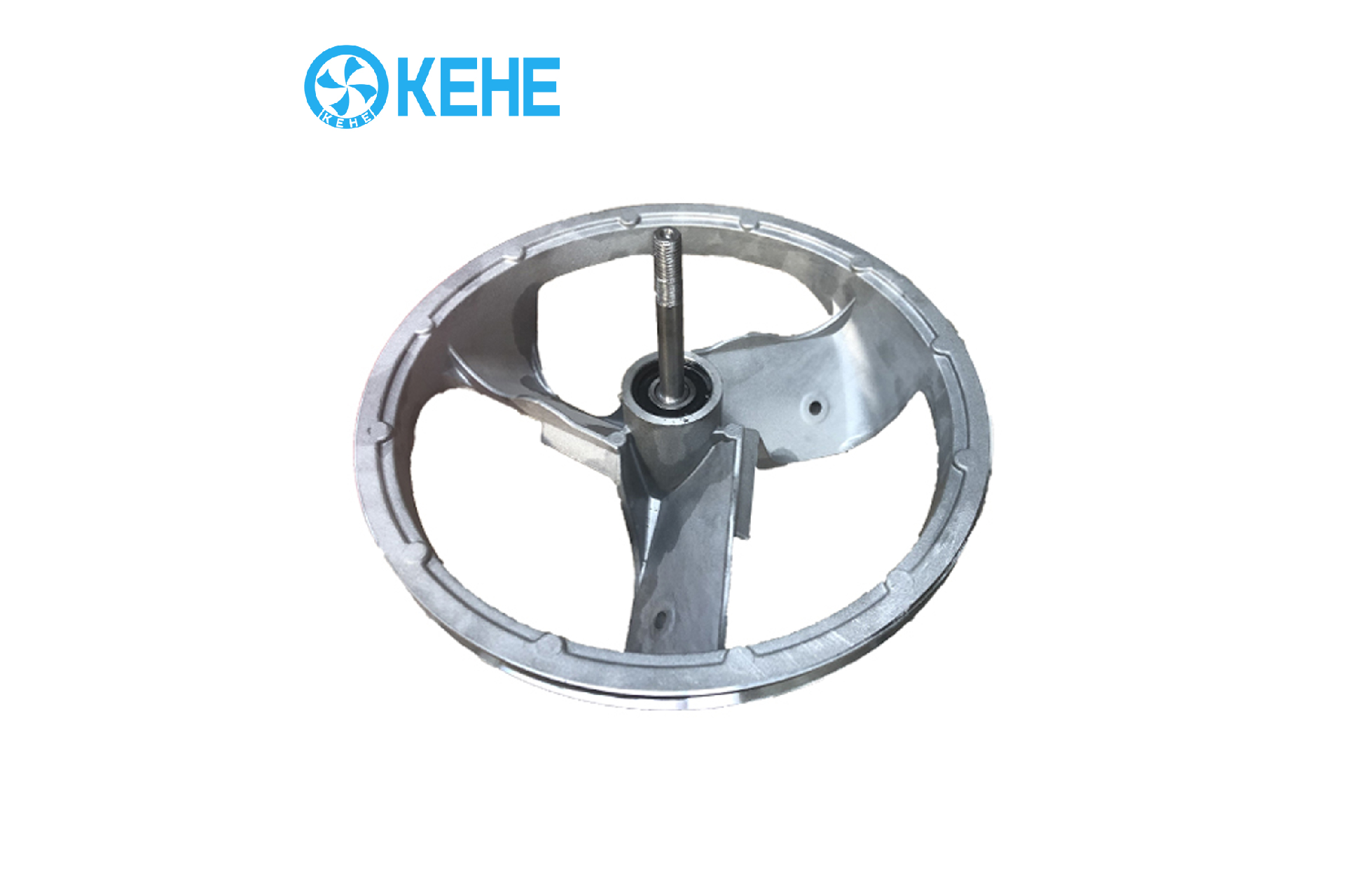

Fan Belt Pulley Material: aluminum-magnesium alloy Feature: Good outlook with light weight. Especially to reinforcing rib to increased strength. No broken. Long service life. | ![图片 4.png](/static/upload/image/20240410/1712739540191307.png) |
|
|
|
|
|
|
|

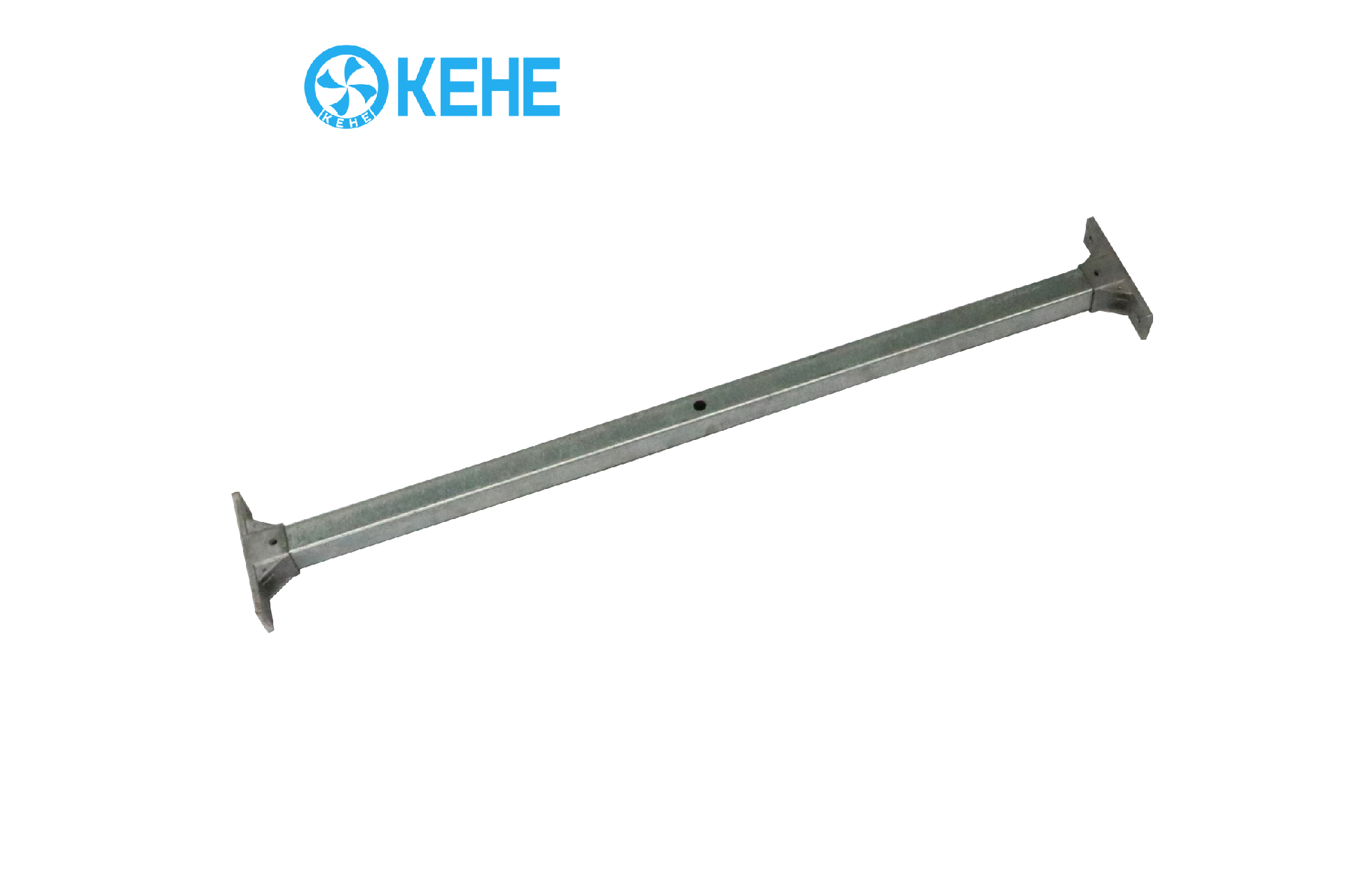

![图片 5.png](/static/upload/image/20240410/1712739640199567.png) | Blade Support Material: Hot-dip galvanized 3mm thickness Feature: Top and bottom support base made by aluminum-magnesium alloy. It's avoid the rusty problem. Easy to fix and ensure long service life. |
|
|
|
|
|
|
|

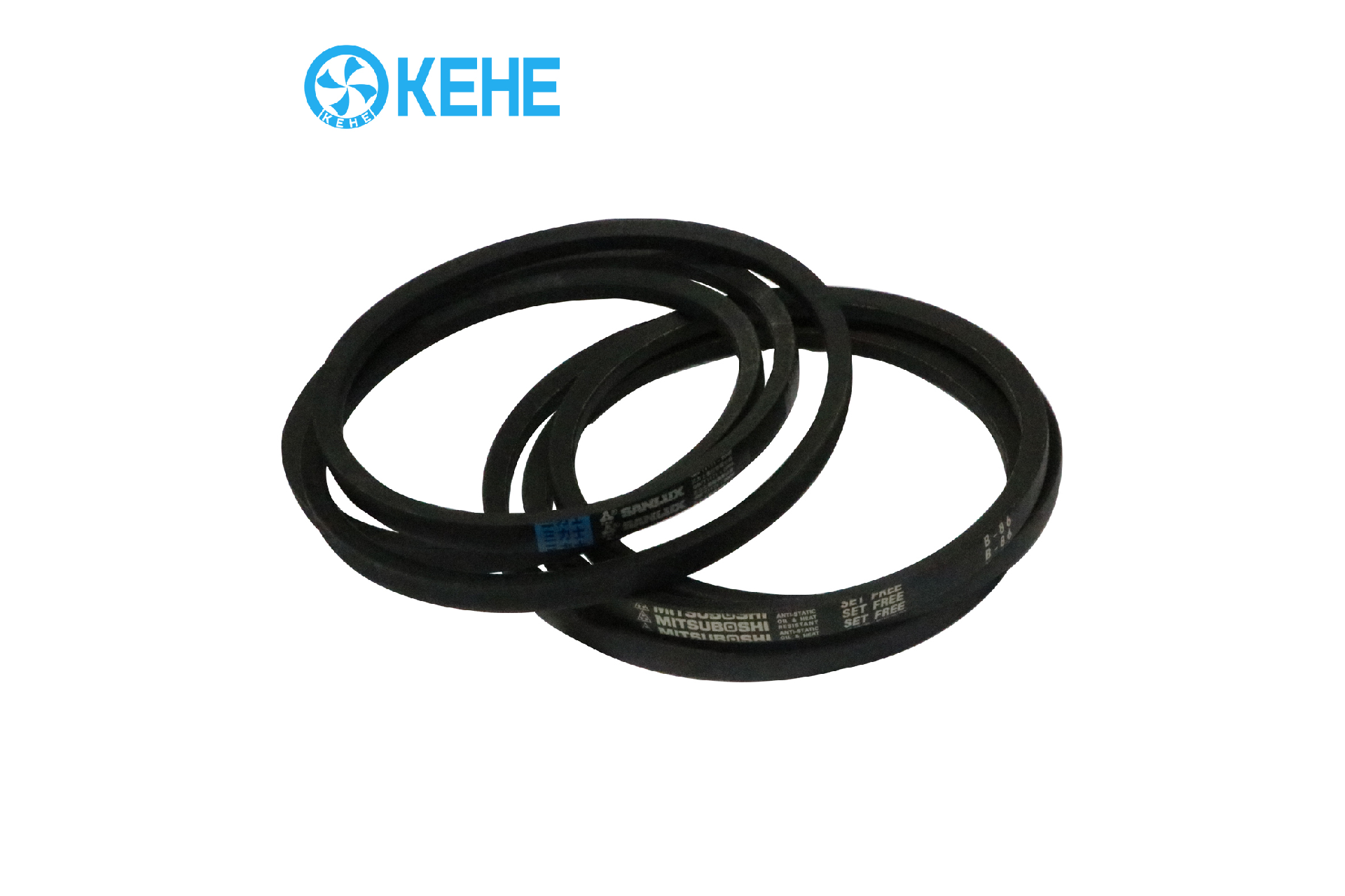

Fan Belt Type: Chinese belt and Japanese Mitsuboshi brand belt Feature: Long service life and no repair. | ![图片 6.png](/static/upload/image/20240410/1712739656870451.png) |
|
|
|
|
|
|
|

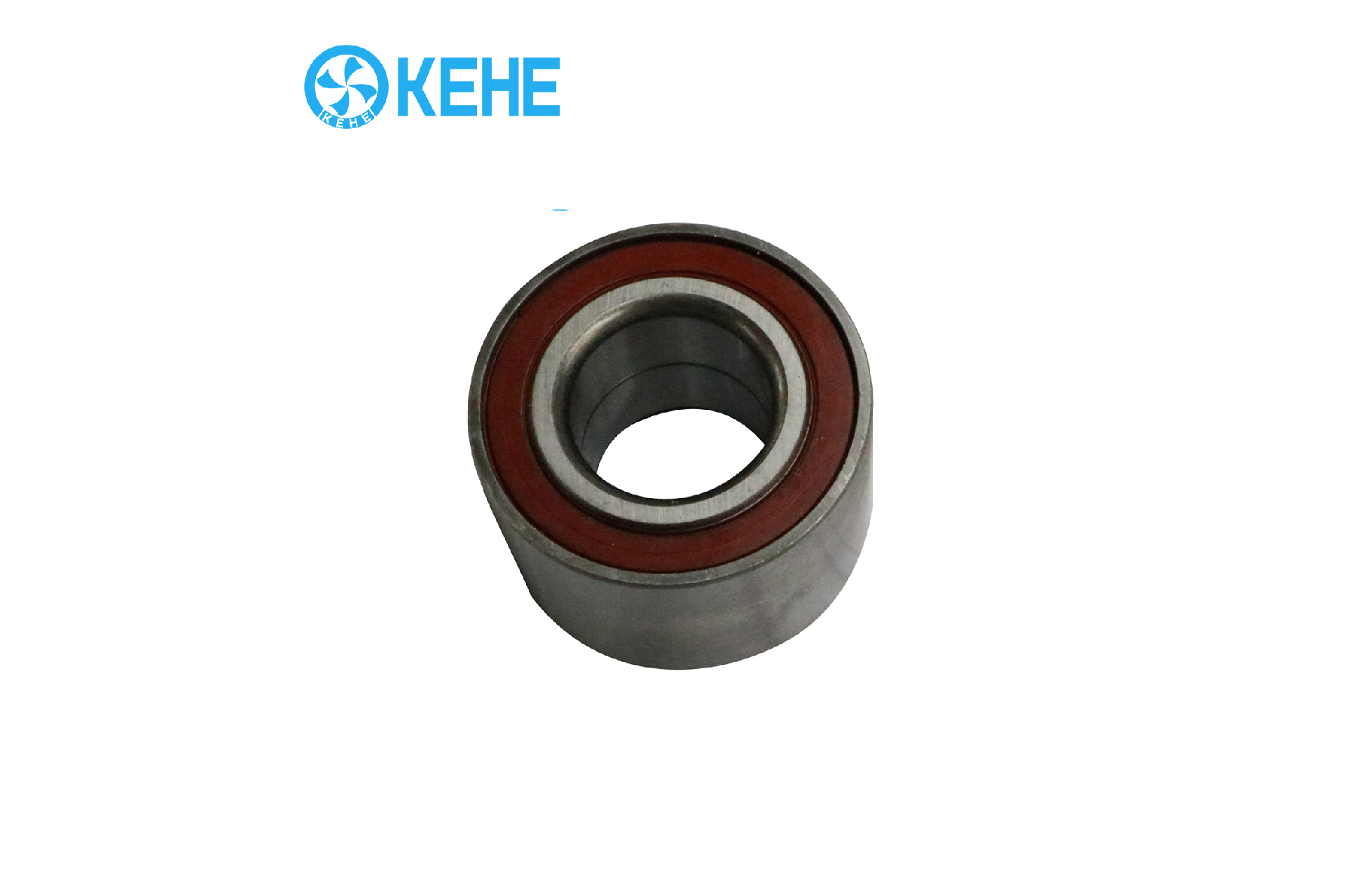

![图片 7.png](/static/upload/image/20240410/1712739709145587.png) | Bearing Feature: High quality double-row bearing, high intension, low noise, long service life. |
|
|
|
|
|
|
|

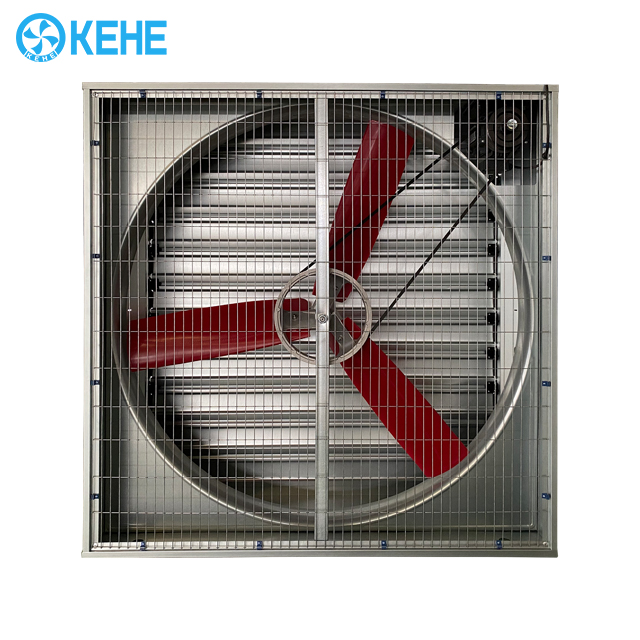

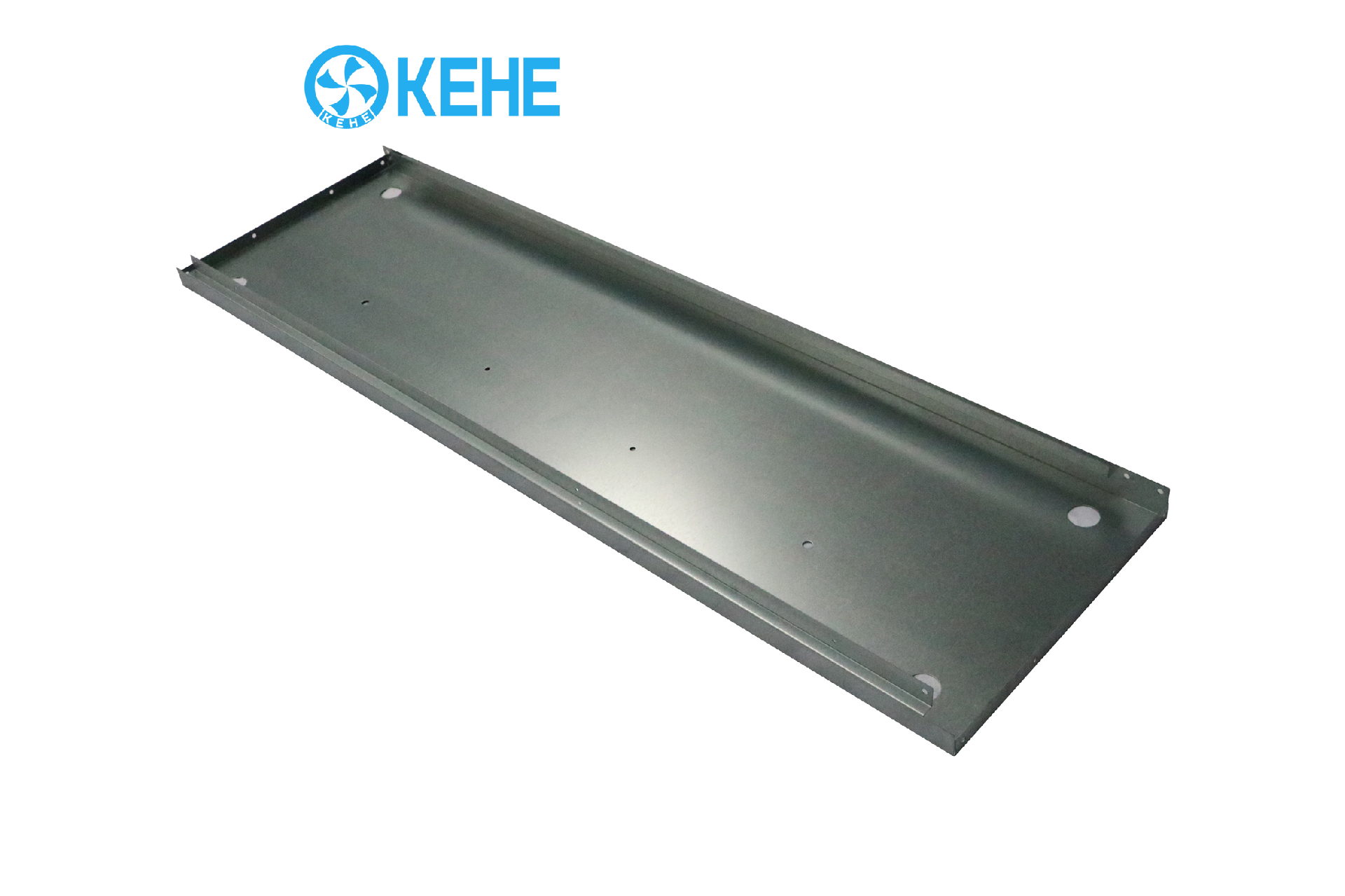

Frame Material: 275g coating weight galvanized sheet Feature: KEHE has advanced production technology with automatic equipment. Professional production line, NC-based professional equipment. Auto punching and bending. Highly-accurated. |
![图片 8.png](/static/upload/image/20240410/1712739742852556.png)
|
|
|
|
|
|
|
|
![图片 9.png](/static/upload/image/20240410/1712739755123876.png)

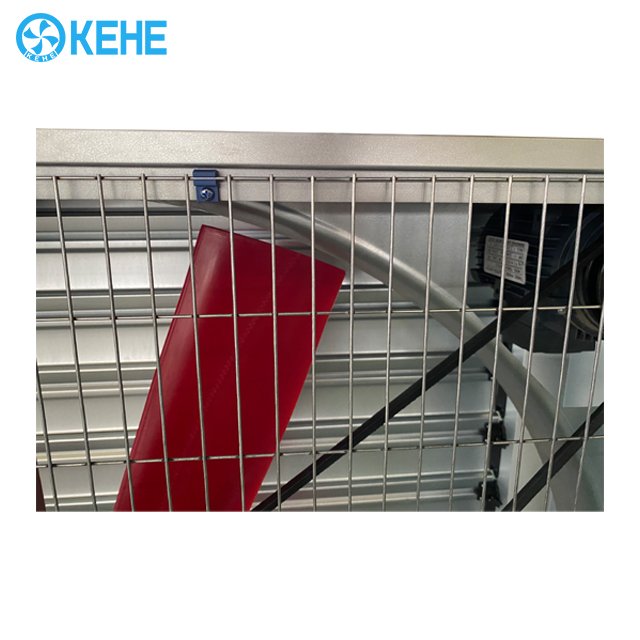

| Protection Mesh Material: Hot-dip galvanized wire with electrostatic plastic spraying Feature: It's no easy to get rusty. Attractive and durable. |
|
|
|
|
|
|
|

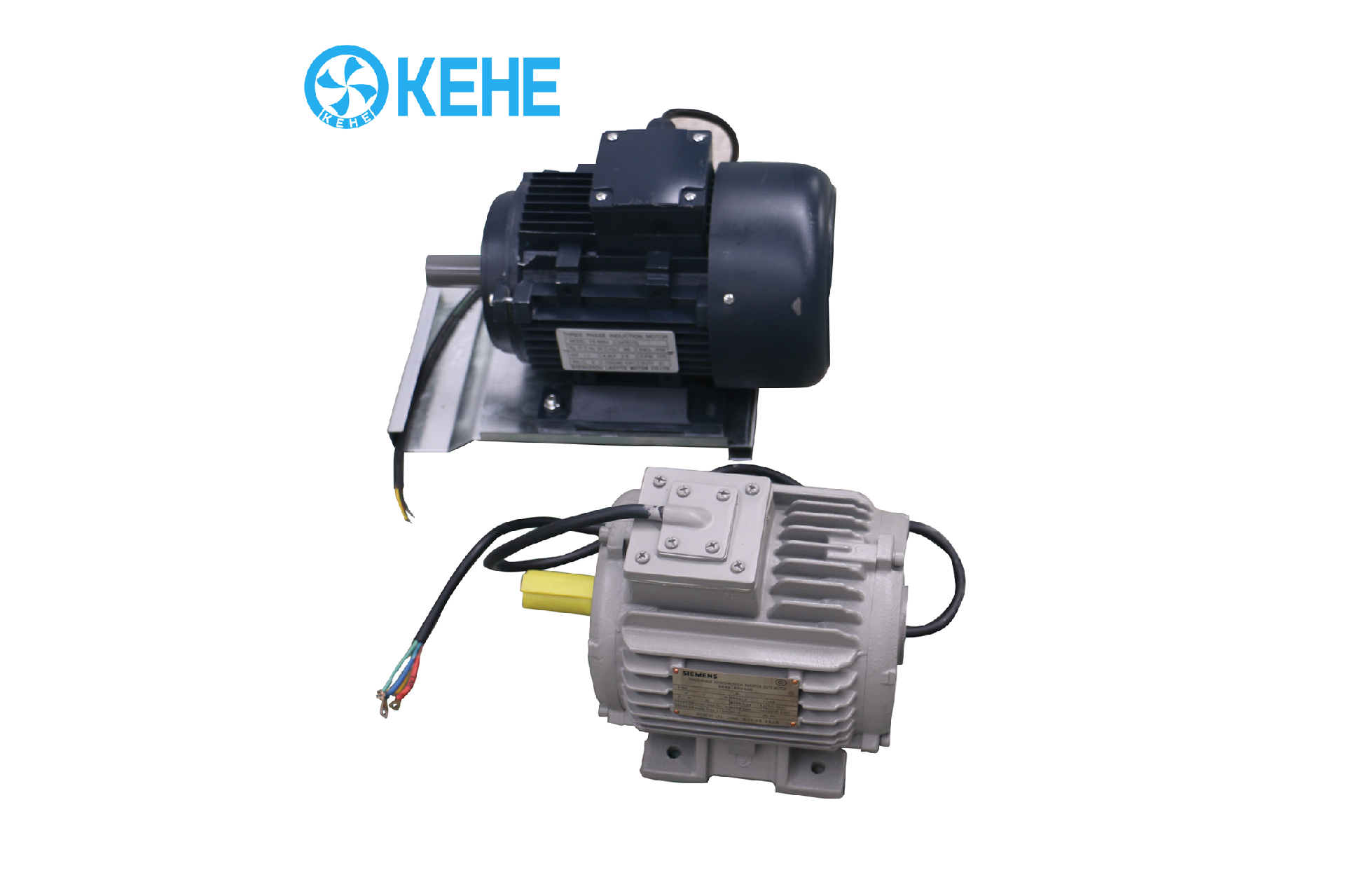

Motor Type: Chinese motor and Siemens motor Feature: Volt and frequency can OEM upon to your request. Chinese motor with phase failure protective device to ensure motor working well. Motor protection class: IP55, Insulation class: F grade. | ![图片 10.png](/static/upload/image/20240410/1712739767105418.png)
|
|
|
|
|
|
|
|
